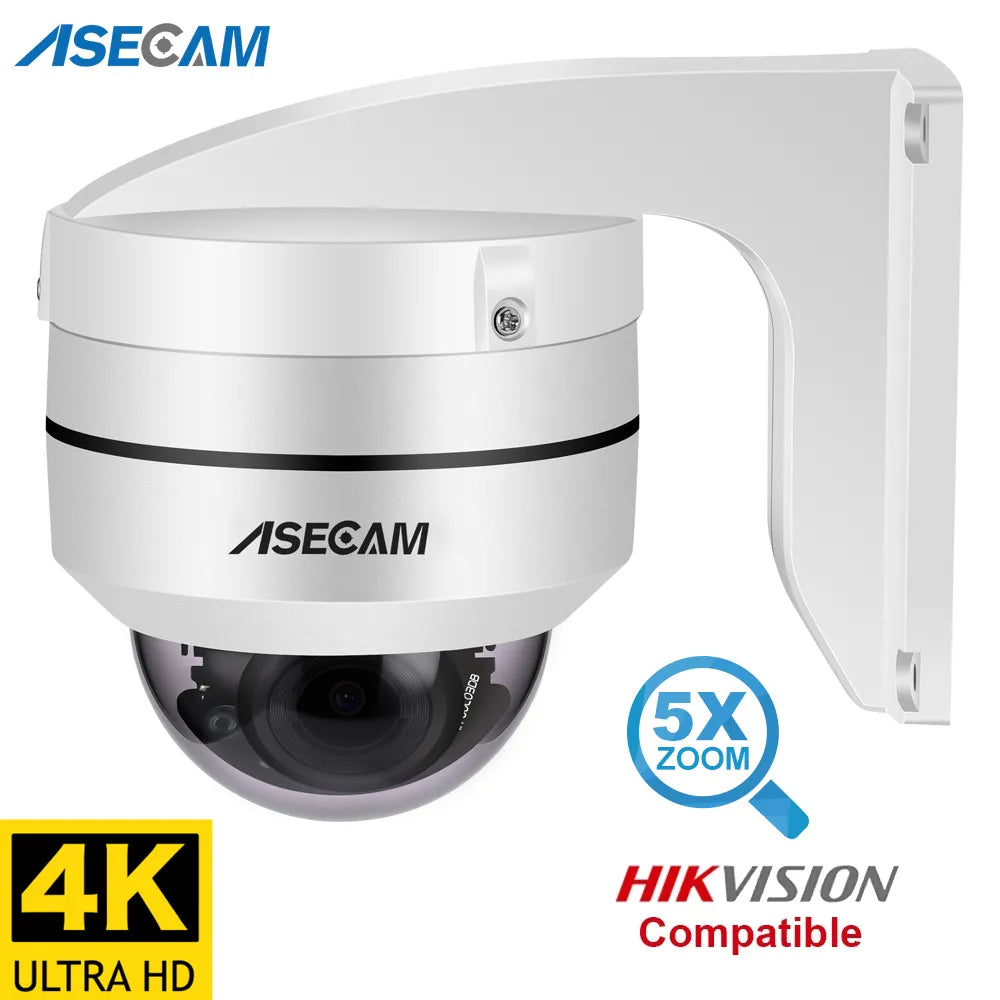

Hikvision Compatible 8MP 4K PTZ IP Camera Outdoor Dome Onvif PoE 5X Optical Zoom CCTV Audio AI Auto Tracking Surveillance Camera
SPECIFICATIONS
Brand Name: ASECAM
Origin: Mainland China
High Definition: 8.0 Megapixels
Supported Operating Systems: Windows XP
Supported Operating Systems: Windows Vista
Supported Operating Systems: Windows 7
Supported Operating Systems: Mac OS
Supported Operating Systems: Windows 8
Supported Operating Systems: Windows 10
Lens (mm): 2.7-13.5mm
Style: Dome Camera
Connectivity: IP/Network Wired
Installation: Ceiling
Installation: Embedded
Installation: Side
Installation: Normal
Installation: Wall Mounted
Installation: Pendant Mount
Installation: Corner Mount
Minimum Illumination(Lux): 0.001 Lux
Scene: Indoor and Outdoor
Color Night Vision: No
Megapixels: 8MP
Storage: None
Video Compression Format: H.265
IR Distance(m): 50m MAX
Certification: CE
Color: White
Alarm Action: FTP Photo
Alarm Action: Local Alarm
Alarm Action: Email Photo
Movement Range(Tilt): 0°-360°
is_customized: Yes
Model Number: Hikvision Compatible
Supported Mobile Systems: Android
Supported Mobile Systems: IOS
Smart home platform: NONE
AI Functions: Motion Detection
IP Rating: IP67
Special Features: Vandal-proof
TF Card: None
Digital Zoom: Other

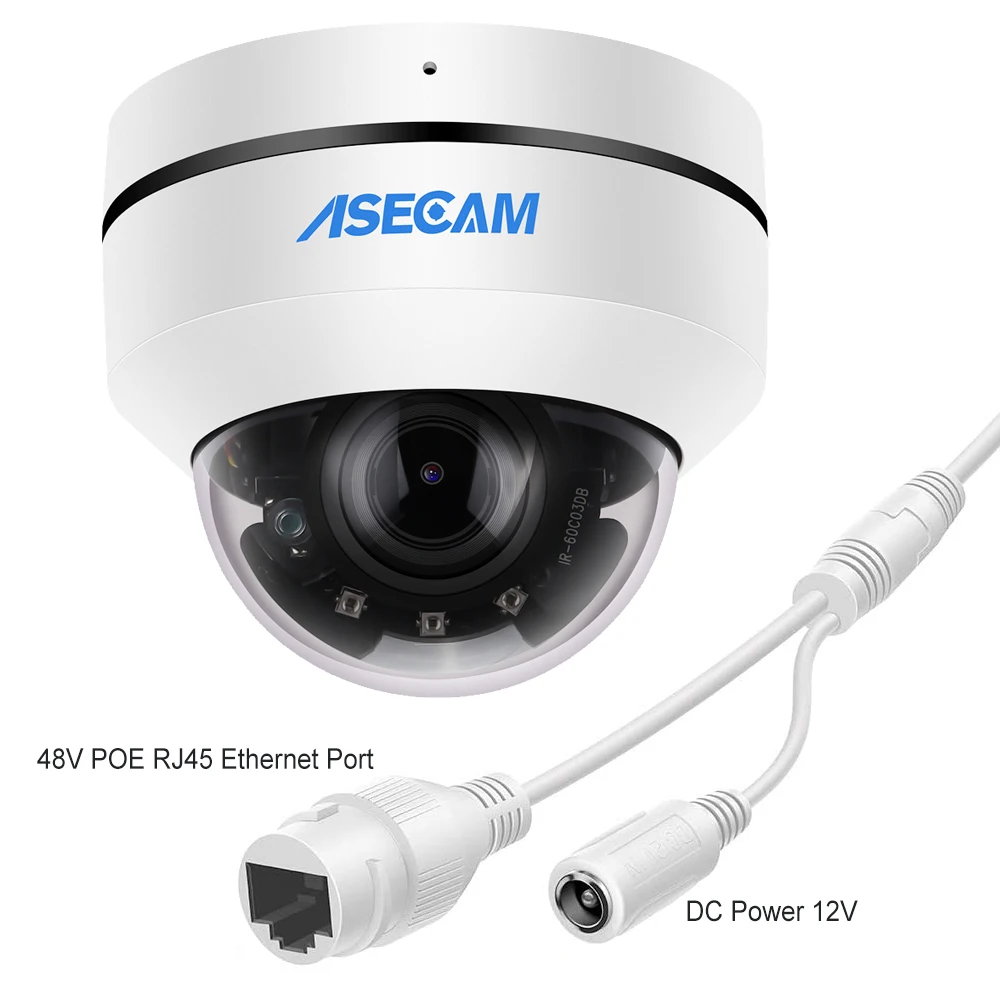

Power Supply(V): DC12V/POE (802.3af)
Audio Output: 1CH RCA
Power Consumption(W): 12.2w MAX
Sensor: CMOS
Sensor Brand: SONY
Shell Material: Metal
Power Supply: With POE
Viewing Angle : 112°
Optical Zoom: Other
Movement Range(Pan): 0°-360°
System Compatibility: ONVIF, PSIA, CGI, ISAP
Image Enhancement: BLC/3D DNR/BLC
Day/Night Switch: Day/Night/Auto/Schedule
agreement: hikvision
AI function 2: Vehicle Detection
AI function 3: Samrt Tracking
AI function 4: Human Detection
Other characteristics 2: Waterproof /Weatherproof
Mobile Phone APP Viewing: Danele ; AC180Pro
RTSP: YES
RTMP: YES
Working Temperature: -45 -- +55
Mobile Phone Remote: YES
Style A: Surveillance camera
Style B: smart home
Style C: cctv
Style D: security camera
Style E: camera security
Style F: cctv camera
Style G: Video surveillance
Style H: home surveillance cameras
Style K: outdoor camera
Style L: surveillance camera for home
Style X: camera surveillance house
Style S: Cctv outdoor camera
Style Y: Video surveillance outdoor
Style N: Poe camera
Style Z: ip camera
Style W: ptz
Style R: camera surveillance
Style P: Optical zoom
An Incredible 8MP 4K Ultra HD PTZ Camera
The Newest SONY Sensor brings you the ultimate 4K experience and captures more details, especially in low light,With a high resolution of 8megapixels (3840 x 2160), this 8MP HD IP surveillance camera is able to capture videos in 3840p HD quality. It is a huge advancement compared to 720p HD or 1080p Full HD. you never miss a single detail of your loved ones. which enables you to see all objects very clearly.

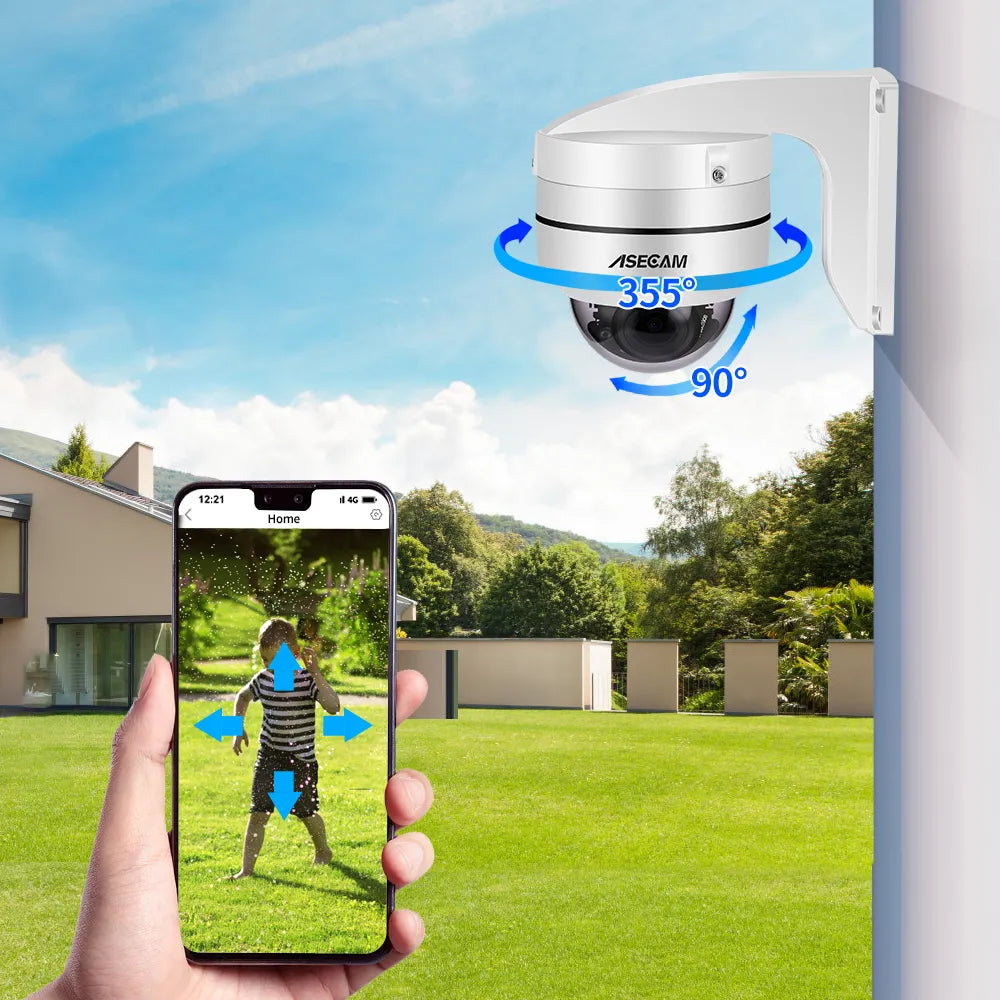

With Pan-Tilt-Zoom function
With 355° pan & 90° tilt, PTZ Camera can monitor a surprisingly large area with a single security camera
5X Optical Zoom
5X optical motorized zoom enables you to zoom in to see more details of far-away objects without impairing image quality or zoom out to get a wider and larger view (355°~100°). Control the 5x zoom rotating through the NVR PC ,and ,Smartphone .
Cutting-Edge H.265 Video Compression
The H.265 coding standard enables you to record up to 4 times longer than H.264 with the same HDD. At the same bandwidth, it not only clearer and smoother video transmits , but also saves more disk storage space, thus saves a large amount of money for you.
One-way Audio Support
This Dome video surveillance camera has built-in one-way Audio function. Pick up the voice around, and get a clear voice on the otherside.One-way Audio function, Record every slight sound,Protect you and your family safety every seconds.
Motion Detection
Whenever a danger is detected, this surveillance camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device.You can create specific motion detecting zones to monitor certain areas as you want. You can adjust motion detection sensitivity to reduce false alerts.
AI Human Tracking Auto Zoom
The camera will adjust the pan/tilt rotation and zoom in automatically, capturing clear monitoring targets and auto-tracking moving human,and push alerts via email or notifications to your phone.
Night Vision Up to 50m
The PTZ surveillance camera is equipped with auto IR LED Lights for up to 50 meters night vision.Provides excellent night vision for the camera
Built in SD Card Slot Motion Alarm Recording
You can playback video anywhere & anytime to review more complete motion details,even if you missed an alert. ip camera supports up to 256G SD card for recording files locally(SD card not included). Supports full time loop recording , when the Sd card is full , old video will be covered view new recording automatically .
Support Motion Alarm Recording , you could just record when it detects movement to save more storage for your SD card and cloud Storage.
IP67 Weather Rated Enclosure and High Quality Night Vision
Ideal for outdoor applications. With a wide range in operating temperatures, it is designed to withstand extreme temperatures and protected from dust and rain.With LED lights and improved infrared radiation for 24-hour vigilance, the 5MP cameras ensure a clear night vision, up to 100 feet long distance (depending on the environment).With IK10 vandal resistance, asecam cameras can sustain up to 20 joules external mechanical impact. In other words, asecam camera can protect against a 10Kg object dropped from 40cm. would be a ideal camera for vandal-proof.
Easy access via free Mobile Device APP & PC Software
Provide Android & IOS APP And Professional CMS PC Client Software. No matter where you are, you can remotely access the camera to see live streaming and stay connected. Remotely view the camera via APP on your mobile device

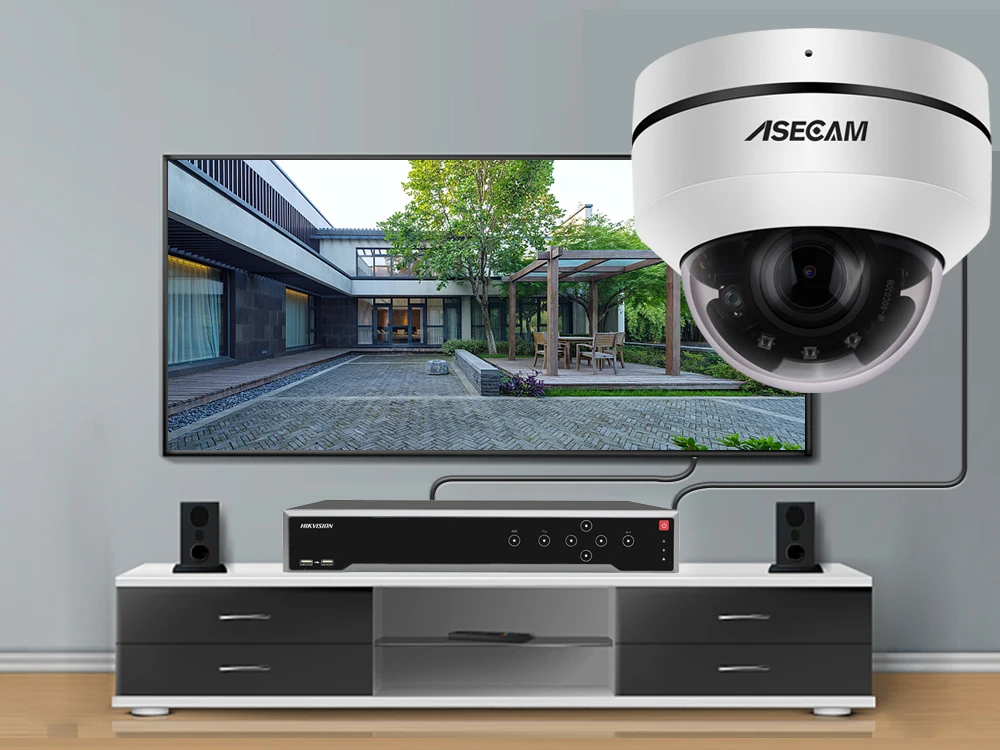

Plug & Play Perfect Work with Hikvision NVR
Featured with Hikvision Private Protocol, this ASECAM PTZ camera is able to Plug & Play with Hikvision NVR. Easy to use even for beginner.
Connectable to Third Party Recorders
As all the ASECAM security camera system supports ONVIF protocol, it`s connectable to third party video recorders. In order to give full play to the functional advantages of the camera, we more recommend you to use Hikvision recorder or ASECAM recorder!
Work with NVR for 24/7 Reliable Recording
If you have multiple IP cameras or if you want 24/7 recording, a ASECAM NVR is your best choice. The NVR works perfectly and efficiently with the cameras for round-the-clock monitoring and recording for your home & business security and surveillance.

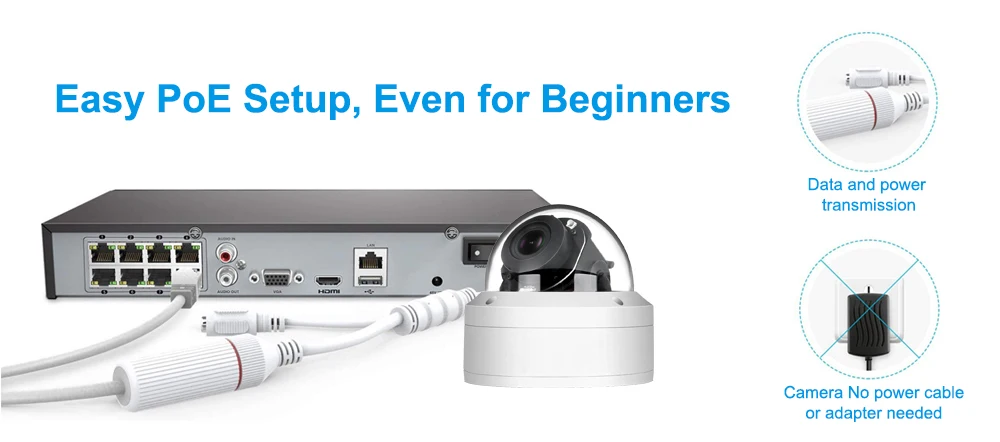

PoE Makes Easier Wiring and Installation
The Power over Ethernet (PoE) is an advanced technology, which enables you to use a single network cable for both video and power transmission, installation easier! Besides, thanks to PoE you will never worry about electric leaks!

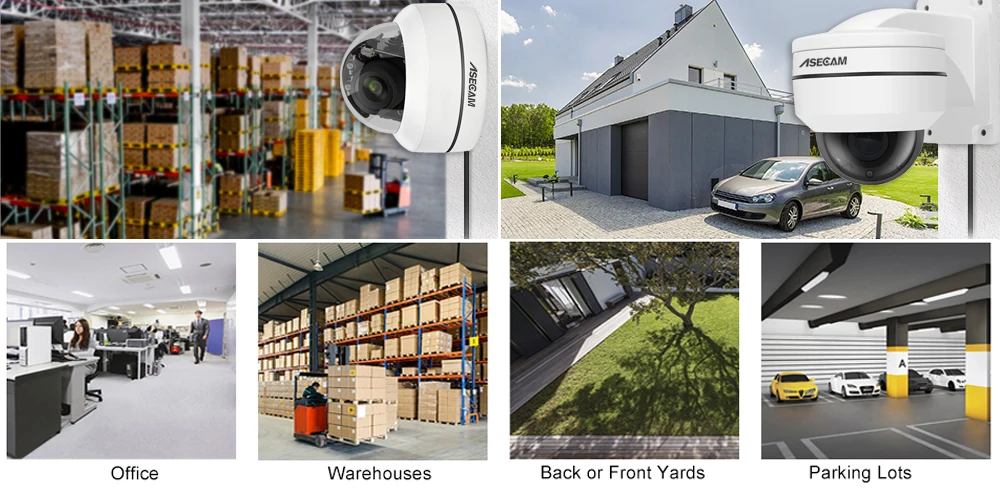

Applied to Multiple Occasions
Widely used for a variety of environments, like home, meeting room, warehouses, shopping mall and so on. The IP security system is very easy to use, it is a best choice for your life.
Product Included:
5MP/8MP POE PTZ Camera *1
Screw *1
Waterproof connector *1
User Manual &CD (Online)*1

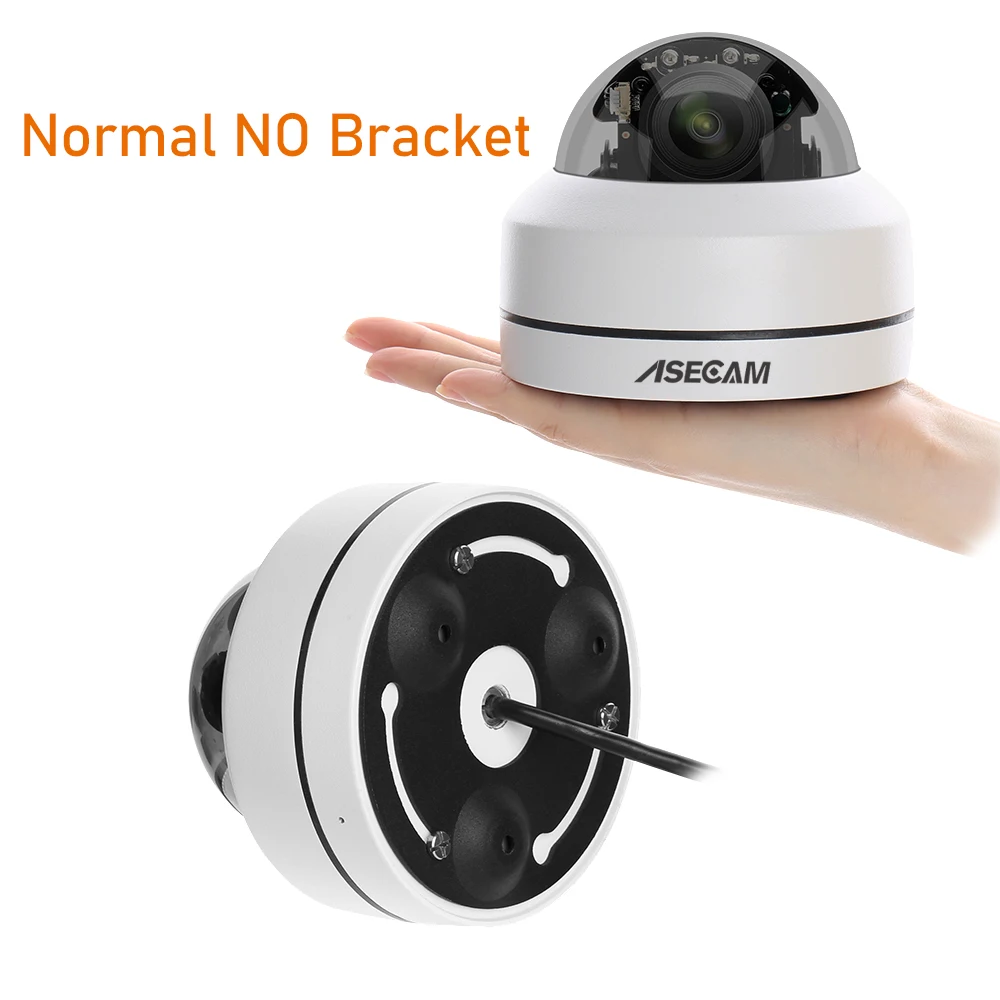

Product Detail:
Frequently Asked Questions:
1.Why can't I open the default IP address 192.168.0.123 via web browser?
The camera is working in DHCP mode by default, it will obtain the IP settings from router automatically . Please install the IP search tool to find the camera'sIP address. Camera IP address will be 192.168.0.123 if no router in the LAN.
2.How to reset the password?
The default Username: admin, Password: 123456. If you lost the password or would to reset the camera's setting, please install the search tool to search the camera IP and click Reset factory button.
3.How to upgrade the IP camera?
1)Ask the supplier for the suitable firmware, 2) you can use the web browser, search tool, or PC client to upgrade the camera, 3) go to the Configuration > System > update, click browse and select the firmware, then click Upgrade button and wait for the operation to complete.
4.How to fetch the RTSP video stream and http snapshot?
1)VLC test Main Stream: rtsp://admin:123456@IP:554/stream0
2)VLC test Sub Stream: rtsp://admin:123456@ IP:554/stream1
3)Low resolution snapshot: http://IP/cgi-bin/snapshot.cgi?stream=1
4)HD snapshot : http://IP/cgi-bin/snapshot.cgi?stream=0 (some models support)
5.Why does the NVR not show image after adding IP camera?
1)Make sure you selected the right protocol and enter the correct username and password when adding the cameras
2)Make sure the NVR and IP camera are the same IP subnet.(eg.NVR:192.168.1 .x, and IP camera:192.168.1.y)
3)Try changing the camera encode mode to H.264 if the NVR can't support H.265. (Configuration -> Camera -> Video > Encode mode: H.264)
6.How to make the NVR record in motion detection mode?
1)add the IP camera via ONVIF protocol
2)change the NVR record mode to Motion Detection mode
3)check the NVR screen MD icon and try playback Please refer to your NVR manual for NVR motion record option.
7.Which kinds of third-party security software can be compatible with?Milestone, Avigilon, Pel co VxToolbox, Blue Iris, iSpy, Synology, Digifort
