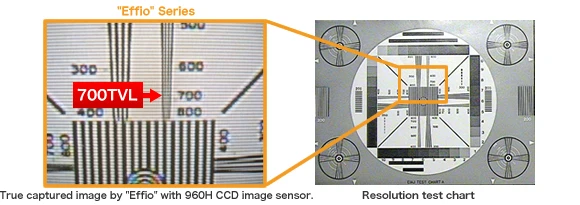

By adopting Sony Super HAD II CCD, the camera produces clear picture up to 700 TV lines in color

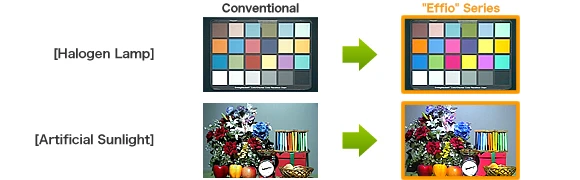

By adopting Sony unique DSP color temperature computing technology, Within a wide color temperature range, the camera can adapt changing of color temperature, avoid color distortion when under different color temperature.
By adopting Sony unique DSP Technology, automatically detect dark zone of the image, perform real-time color adjustment and dark zone, reproduce natural, clear image.
By adopting Sony unique DSP head-light suppression Technology to ensure the image exposure evenly, view dark object which around strong light clearly.

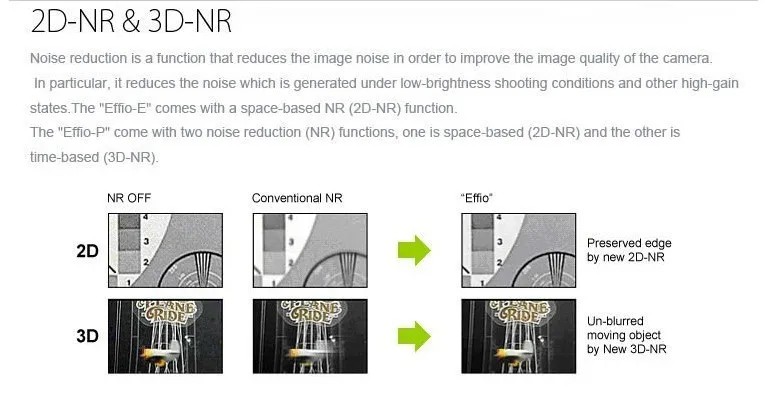

By adopting unique digital processing technology, it can reduce the luminance and chrominance noise separately , and produce clear , obvious images by not affecting image resolution.
The camera detects motion and generates signals without any additional external sensors. Can set 4 different zones for privacy masking.
Image Sensor:
Super Sony Effio IMX138+8520
Horizontal Resolution:
1200TVL
Lens 1080p:
3.6mm
Signal system:
NTSC / PAL
IR Illuminators:
0.001 Lux,F1.2( 0 Lux IR ON)
wavelengh
850NM
Back Light Compensation
Auto
Auto Iris
Video / DC
Gamma
0.45
S/N Ratio:
48db (AGC-OFF)
Scanning System:
2:1 Internal
Synchronization System :
Internal Synchronization
Shutter Speed:
1/60-1/15000 (second)
Video Output:
1.0Vp-p, 75 OHM
Power Supply:
12V DC (Sold separately)
Operation Temperature
-30C ~ 50C / 0F ~ 110 F
Weatherproof
Yes
Image Sensor:
Processor:
1/3" Sony Super HAD CCD II
Sony Enhanced 960H Effio-E 4140 DSP
Horizontal Resolution:
Effective Pixels:
750 TV Lines
PAL:976(H)x582(V) & NTSC: 976(H)x494(V)
Lens: 3.6mm
Signal system
PAL / NTSC
IR Illuminators:
Min Illumination:
0.01Lux
0.01 Lux,F1.2( 0 Lux IR ON )
wavelengh ---
Back Light Compensation Auto
Auto Iris Video / DC
Gamma 0.45
S/N Ratio: 48db (AGC-OFF)
Scanning System: 2:1 Internal
Synchronization System : Internal Synchronization
Shutter Speed: 1/60-1/15000 (second)
Video Output: 1.0Vp-p, 75 OHM
Power Supply: 12V DC (Sold separately)
Operation Temperature -10C ~ 50C / 0F ~ 110 F
Weatherproof YES
Chip parameters:

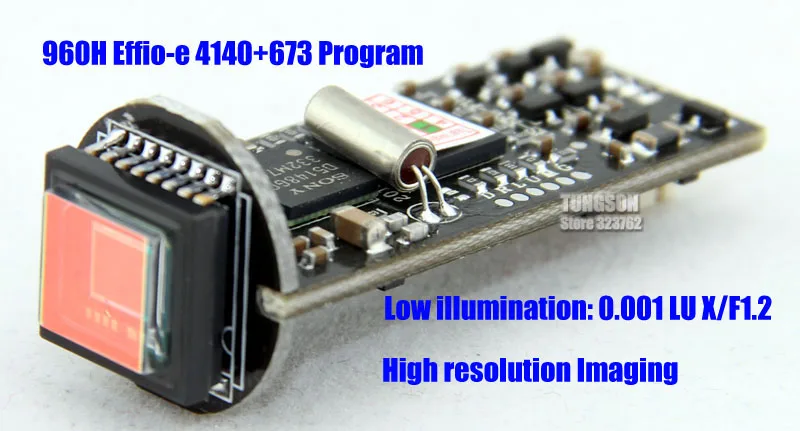

CCD: 1/3 Sony 960 h CCD Sensor effio
Pixel: PAL: 1020 h x 596 v (0.6 megapixel) NTSC: 1020 h x 508 v (0.5 megapixel)
Effective pixel: PAL: 976 h x 582 v (0.57 megapixel) NTSC: 976 h x 494 v (0.48 megapixel)
System: PAL/NTSC
Resolution: 750 TVL
Digital Noise Reduce: 3 DNR, support 0 ~ 15 16 levels adjust
Low illumination: 0.01 LU X/F1.2
S/N: 55 db or
Video output: 1.0 Vp - p / 75 ?
AGC: 0.25/0.50/0.75/1.00 4 level adjust Max: 55 db
White balance: open/Close
BLC: HLC/BLC
Electronic shutter: 1/50 (1/60) - 1/100000 seconds
Gama: 0.45/1.0
Working Voltage: DC12V plus or minus 5%
Humidity: 0% ~ 96%
Installation Notes:
(1) Do not use this product falls on the ground or by strong percussion;
(2) unless instructed otherwise, do not dismantle the machine;
(3) before use to determine whether the specified power supply voltage;
(4) to avoid targeting light (such as sunlight, lighting, etc.), otherwise easily lead to too bright or pull light phenomena (this is not a failure), will also affect the CCD life;
(5) Avoid wet conditions, dust, extreme heat, extreme cold, strong electromagnetic radiation and other venues;
(Not include OSD Menu and Power Supply ,Suggest Camera Don't use completely dark environment)
